New 2023 Cushman® Shuttle™ 4 ELiTE Lithium Electric
MSRP: $16,663
Sales Price:
$14,207
You save $2,456
VIN:EZGBVBFPLP3603258
Stock:23CU19
Value Your Trade
Get an AccuTrade Instant Offer for
Your Car in Minutes
Apply for Financing
Apply today — It's easy!
Simple — Fast — Free
Stop By Our Location
We’re here to help you find exactly what you’re looking for.
Charlie Obaugh RV & Outdoors
213 Rolling Thunder Lane Staunton, VA 24401
Vehicle Details
Exterior Color
Patriot Blue
Drivetrain
Motor Shaft Direct Drive
Transmission
Differential w/ Helical Gears
Body Style
General
Year
2023
Length
5 in
Width
5 in
Height
6 in
Cargo Capacity
1,200 lbs
Description

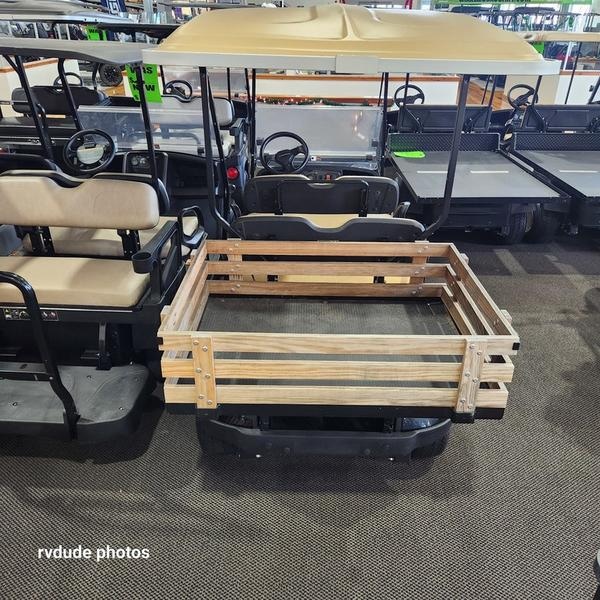

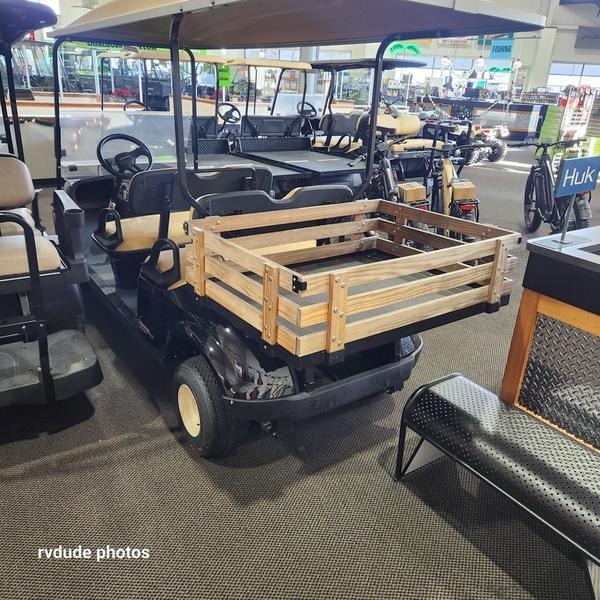

2023 Cushman® Shuttle™ 4 ELiTE Lithium Electric Quickly move small groups and gear with the versatile Shuttle™ 4. Specifically designed to multi-task, the Shuttle 4 combines four forward-facing seats and a spacious cargo bed, and is ready to transport people and equipment from every corner of the course. Available with the option of ELiTE lithium powered by Samsung SDI Technology or a fuel-efficient 13.5 hp EFI gas engine, the Shuttle 4 gives you the power you need to get the job done. Features may include: 9-CU-FT CARGO BED Haul up to 400 lbs. of cargo using the standard bed with wood stake sides. STANDARD BRUSH GUARD AND HEADLIGHTS Protect the front end of your vehicle with a standard brush guard and increase visibility with standard headlights. BENCH SEATING Transport large groups comfortably and efficiently with ergonomically-designed bench seating. WEATHER ACCESSORIES Protect passengers from the elements with an optional canopy or windshield. AVAILABLE MODELS Cushman offers a range of powertrains designed to meet the exacting standards of our customers and the task at hand. Read more about the available options. ELiTE LITHIUM ELECTRIC Our maintenance-free ELiTE lithium batteries, powered by Samsung SDI Lithium technology, are backed by an unbeatable 5-year battery warranty. The ELiTE Lithium powertrain keeps your Shuttle 4 running efficiently, allowing you to carry guests around your entire facility all day.
Detailed Specifications
Chassis
Body & Finish: Injection Molded TPO (Front) Steel Base Coat/Clear Coat (Rear)
Frame Type
Welded Steel w/ DuraShield™ Powder Coat
Starter
Key or Pedal: Pedal
Overall Length
133.5 in (339 cm)
Overall Width
48.5 in (123 cm)
Overall Height
48.6 in (123 cm) (w/o Roof) / 72.0 in (183 cm) (w/ Struts & Roof)
Wheelbase
93.5 in (237 cm)
Ground Clearance
4.3 in (11 cm)
Curb Weight
1026 lb (484 kg)
Bed Capacity
Load: 400 lb (181 kg)
Seating Capacity
4-Person
Gears
Selection: Dash-Mounted Forward-Neutral-Reverse
Motor Power
13.1 HP (9.8) kW Peak
Axle Capacity Rear
Ratio: 17:01
Suspension
Leaf Springs w/ Hydraulic Shock Absorbers
Front Tire
18 x 8.50 - 8 (4 Ply Rated)
Rear Tire
18 x 8.50 - 8 (4 Ply Rated)
Front Wheel
Track: 34.2 in (87 cm)
Rear Wheel
Track: 38.0 in (97 cm)
Steering
Self-Compensating Rack & Pinion
Brake System Type
Service: Rear Wheel Mechanical, Self-Adjusting Drum
Parking Brake
Self-Compensating, Single-Point Engagement
Electrical
System: 56 Volt
Power System Type
56V AC

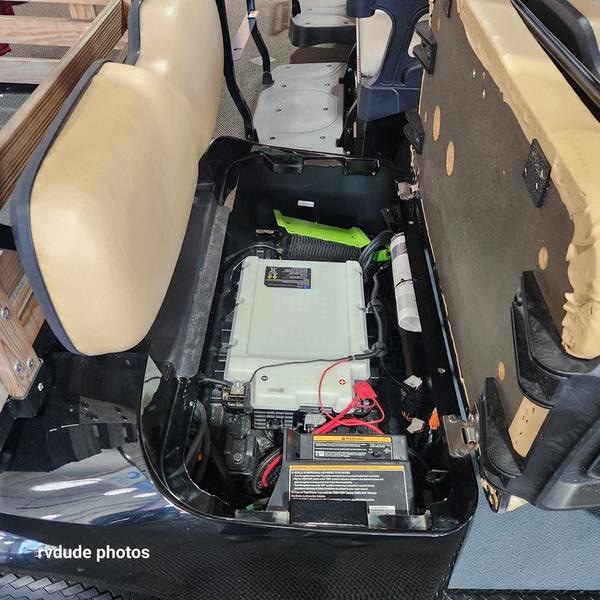

Battery
Three Lithium Ion 56 Volt
Battery Charger Type
56VDC, 120/230 VAC, UL/CSA, CE
Top Speed
14.9 mph ± 0.5 mph (24.0 kph ± 0.8 kph) (High Speed) 12 mph ± 0.5 mph (19.3 kph ± 0.8 kph) (Low Speed) | Controller: 300 Amp AC
